Fastensol Pan Tile Roof Hook - Landscape
Fastensol Pan Tile Roof Hook - Landscape
Regular price
£7.95 GBP
Regular price
Sale price
£7.95 GBP
Unit price
/
per

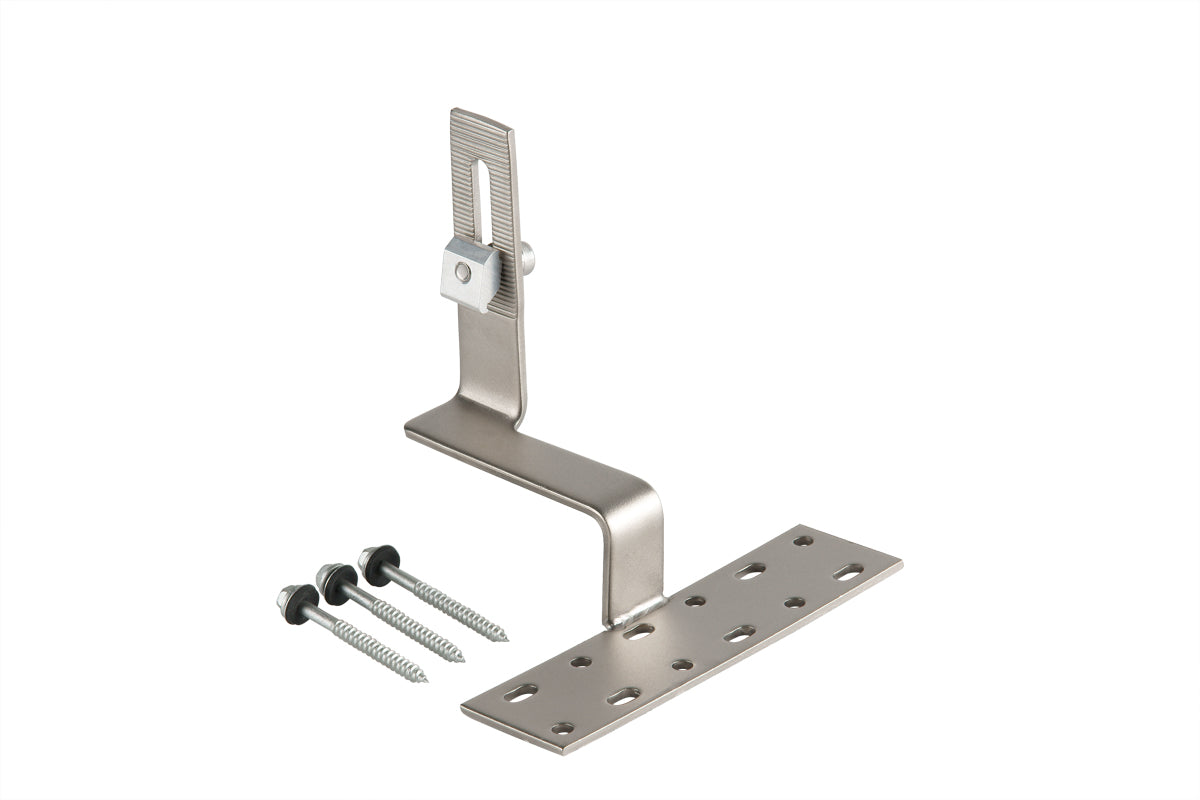

These substantial stainless steel brackets are used to secure the mounting rails to the roof beams. These are suitable for pan tile and concrete tiled roofs only.
To fit, a few tiles are removed from the outside of the roof and the hook secured to a rafter pointing 'downhill' with the tek screws provided. Plywood padding can be used to ensure the correct spacing from the tile surface. The tiles are simply replaced around the hook ensuring a weatherproof finish.
System features and specifications:
- Suitable for pitched and flat roofs
- Cladding type: concrete / pan / roman tiles (other roof mounts also available)
- Maximum slope: 60 degrees
- Wind load: up to 60m/s
- Snow load: 2.0kn/m2
- Maximum building height: 20m
- Material: stainless steel
- Color: silver
- MCS 012 certification
- Warranty: 12 years durability on material, 5 years on finish
- Manufacturer: Xiamen Fasten Solar Technology Co., Ltd
